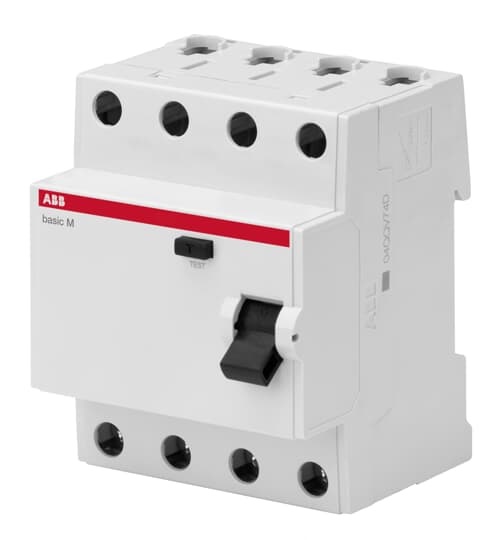

ABB ELCB 4P 40A 100mA

Technical Standards:IEC 61008 Type of Residual Current:AC type Rated Voltage (Ur):230/400 V Rated Operational Voltage:230 / 400 V AC Rated Insulation Voltage (Ui):500 V Rated Impulse Withstand Voltage (Uimp):4 kV Rated Current (In):40 A Rated Residual Current:100 mA Rated Service Short-Circuit Breaking Capacity (Ics):1 kA Maximum Surge Current:0.25 kA Leakage Current Type:AC Rated Frequency (f):50 / 60 Hz Power Loss:at Rated Operating Conditions per Pole 3.2 W Number of Poles:4 Operating Characteristic:Instantaneous Position of Neutral Terminals:Right Mounting Type:DIN rail Options Provided:None Accessories Available:No Rated Cross-Section:4 – Multi-Wired 10…25 mm² 1 – Solid-Core 25…25 mm² Environmental Ambient Temperature:-25…55 °C Ambient Air Temperature:Operation -5 … 40 °C Storage -40 … 70 °C Degree of Protection:IP2X RoHS Status:Following EU Directive 2011/65/EU Environmental Information:Refer to RoHS Technical UL/CSA Short-Circuit Current Rating (SCCR):0.1 A
